Flanges

JF Engineering Products LLP manufacturer & exporter of Flanges availbale in various forms and size, standards like ASME B16.5 flanges, ASME B16.47 Flanges and ASME B16.36 flanges.These all standards availble in all type of flanges like Weld Neck Flanges, Blind Flanges, Spectacle Blind flanges, Slip on flanges, Orifice flanges and Threaded Flanges etc.

We have specialization to manufacture customized Flange per customers’ specifications, we welcome small quantity order.

Lapped Joint Flange

Lap Joint Flanges are similar to other types of industrial flanges, but it does not have a raised face. Lap joint flanges are used in conjunction with a “Lap Joint Stub End”. The total initial cost of a lap joint flange along with a stub end is around one-third higher than that of comparable welding neck flanges. The pressure holding capacity of lap joint flanges is comparatively lower, and the fatigue life for the assembly is only one tenth that of welding neck flanges.

The lap joint flange with the stub end assembly is normally used in piping systems which require regular dismantling for inspection and cleaning. These flanges slip over the pipe, and are not welded or otherwise fastened to it. Bolting pressure is transmitted to the gasket by the pressure of the flange against the back of the pipe lap (Stub End).

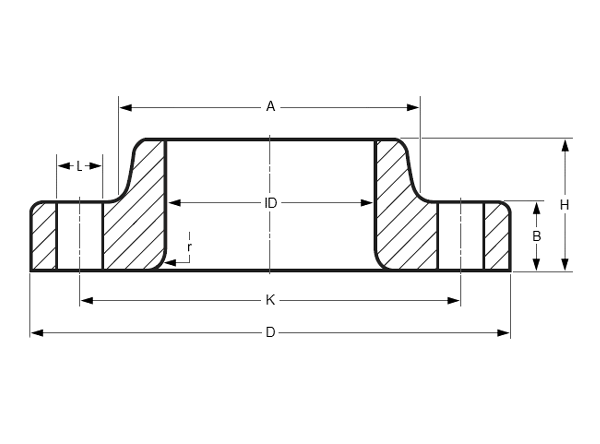

Dimension - ASME B16.5 Lapped Joint Flange

NPS 2½ - ID = 75.4 - r = 8

CL 150 300 600 900 1500 2500
DIA
A
90 100 100 124 125 114
DIA
D
180 190 190 245 245 265
THK
B
22.3 25.4 28.6 41.3 41.3 57.2
DIA
K
139.7 149.2 149.2 190.5 190.5 196.8
H 29 38 41 64 64 79
NO.
L
4 8 8 8 8 8
DIA
L
19.1 22.2 22.2 28.6 28.6 31.8
Stud Bolts Diameter x Length
DIA
(in)
5/8 3/4 3/4 1 1 1⅛
Len
mm
90 100 120 160 160 195
Other Diameters
NPS 1/2 3/4 1 2
3 4 6 8 10 12
14 16 18 20 24

Notes:

  • Dimensions are in millimeters unless otherwise indicated.
  • The length of the Stud Bolt does not include the height of the chamfers (points).

Marking and Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At JF Engineering Products LLP, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
