JF Engineering Products LLP

ANSI/ASMI B16.5 Long Weld Neck Flanges - Stainless Steel ASTM A182 316L, 317L

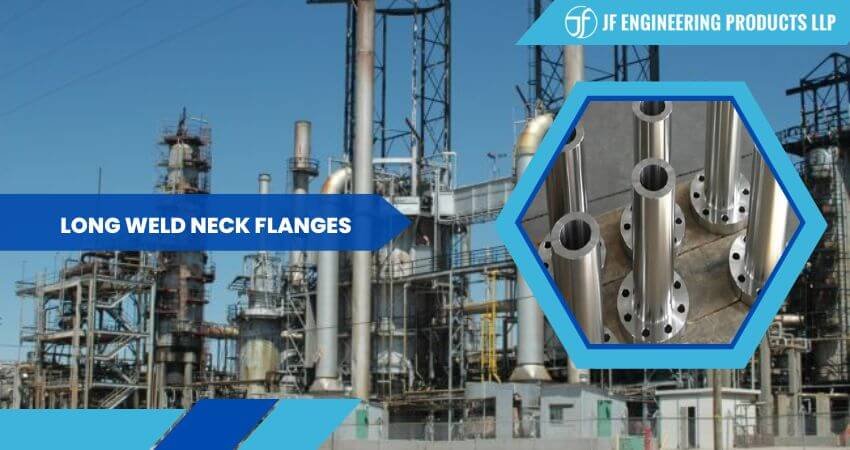

Long Weld Neck Flange

ASTM A105 Long Weld Neck Flanges, Duplex 31803 Long Weld Neck Flanges, Inconel 600 Long Weld Neck Flanges, Alloy 20 Long Weld Neck Flanges, Inconel 625 Long Weld Neck Flanges, Hastelloy C276 Long Weld Neck Flanges, Nickel 200 Long Weld Neck Flanges, Monel 400 Long Weld Neck Flanges, UNS S30400 Long Weld Neck Flanges, 304 Stainless Steel Long Weld Neck Flanges.

JF Engineering offers a wide range of long weld flanges. It helps in high pressure and the need for a hub that is long and tapered are what weld neck flanges are most often used for. Specifying the schedule of pipe that it will be utilized for is of utmost importance when ordering. This type of flange is excellent for use in environments involving extreme temperature fluctuations and excessive handling and bending.

Uses of Long Weld neck Flanges:

It is required when an extended neck is required. It acts as a boring extension. It is used in chemical and petroleum industries and used in residential and commercial buildings. It performs well where there is level of stress and temperature fluctuate. Long weld neck flanges are built in a variety of lengths, size and dimensions according to the need of the customers.

Duplex 2205 Long Weld Neck Flanges Manufacturer, Hastelloy C276 Long Weld Neck Flanges Stockist, Duplex 31803 Long Weld Neck Flanges Stockist, ASTM A105 Long Weld Neck Flanges Stockist, UNS S32750 Long Weld Neck Flanges Supplier, Alloy 20 Long Weld Neck Flanges Manufacturer, 304 Stainless Steel Long Weld Neck Flanges Stockist.

Specification - ASME B16.5 Long Weld Neck Flange
Size: 1/2"NB TO 24"NB IN
Class: 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS DIN Standard ND-6,10, 16, 25, 40 Etc.
Materials: Monel :
Grade: Monel 400, Monel K500, Monel R-405
Nickel :
Grade: Nickel 200, Nickel 201
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy :
Grade: Incoloy 800, Inconel 800H, 800HT
Hastalloy :
Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Stainless Steel :
Grade: ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L
Carbon Steel :
Grade: ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8
Duplex Steel:
Grade: ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61
Alloy Steel:
Grade : ASTM A182 F1, F5, F9, F11, F22, F91
Value Added Service: CNC Machine, Customized Flanges
Coating/Surface Treatment: Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized

Dimension - ASME B16.5 Long Weld Neck Flange

Class 150 Standard Connections Flanges

Size Flange Barrel OD Bolting Nut Stud Bolt Weights Length
Nom Bore LWN & E Bore HB OD Thk. RF of OD LWN HB E # of Holes Hole Size Bolt Circle Stop Dia Relief Dia Relief Length Size RF Length RTJ Length LWN HB E Base
B T D D D C NS NR NL Base Per  1" Base Per 1" Base Per  1"
 1/2 0.5 0.55 3.5 0.44 1.38 1.25 1.5 3.5 4 0.62 2.38 1.5 1.25 0.75 1/2  2 1/4 2 3/4 3 0.3 5 0.4 21 2.7 9
 3/4 0.75 0.74 3.88 0.5 1.69 1.62 1.88 3.88 4 0.62 2.75 1.88 1.62 0.75 1/2  2 1/2 3 5 0.5 7 0.7 27 3.2 9
1 1 0.96 4.25 0.56 2 2 2.25 4.25 4 0.62 3.12 2.25 2 0.75 1/2  2 1/2 3 7 0.7 10 0.9 30 3.8 9
1 1/4 1.25 1.28 4.62 0.62 2.5 2.38 2.62 4.62 4 0.62 3.5 2.62 2.38 0.75 1/2  2 3/4 3 1/4 10 0.9 12 1.2 36 4.4 9
1 1/2 1.5 1.5 5 0.69 2.88 2.62 3 5 4 0.62 3.88 3 2.62 0.75 1/2  2 3/4 3 1/4 12 1 16 1.5 41 5.1 9
2 2 1.94 6 0.75 3.62 3.06 3.69 6 4 0.75 4.75 3.69 3.06 0.88 5/8  3 1/4 3 3/4 15 1.2 23 2.2 57 7.1 9
2 1/2 2.5 2.32 7 0.88 4.12 3.75 4.44 7 4 0.75 5.5 4.44 3.75 0.88 5/8  3 1/2 4 22 1.7 34 3.2 79 10 9
3 3 2.9 7.5 0.94 5 4.25 4.94 7.5 4 0.75 6 4.94 4.25 0.88 5/8  3 1/2 4 1/4 25 2 38 3.6 86 11 9
3 1/2 3.5 3.36 8.5 0.94 5.5 4.88 5.94 8.5 8 0.75 7 5.94 4.88 0.88 5/8  3 1/2 4 1/4 32 2.6 55 5.3 110 13 9
4 4 3.83 9 0.94 6.19 5.5 6.44 9 8 0.75 7.5 6.44 5.5 0.88 5/8  3 1/2 4 1/4 47 3.2 78 6 164 14 12
5 5 4.81 10 0.94 7.31 6.50 7.25 10 8 0.88 8.5 7.25 6.50 1 3/4  3 3/4 4 1/2 57 3.8 87 6.50 189 17 12
6 6 5.76 11 1 8.5 7.75 8.25 11 8 0.88 9.5 8.25 7.75 1 3/4  4 4 1/2 75 5.4 103 7.8 216 19 12
8 8 7.62 13.5 1.12 10.62 9.75 10.5 13.5 8 0.88 11.75 10.5 9.75 1 3/4  4 1/4 4 3/4 102 6.9 157 11 292 26 12
10 10 9.56 16 1.19 12.75 12 12.81 16 12 1 14.25 12.81 12 1.12 7/8  4 3/4 5 1/4 143 9.8 214 16 382 35 12
12 12 11.38 19 1.25 15 14.38 15.56 19 12 1 17 15.56 14.38 1.12 7/8  4 3/4 5 1/2 205 14 329 25 535 48 12
14 14 14 21 1.38 16.25 16 17.12 21 12 1.12 18.75 17.12 16 1.25 1 5 1/4 6 211 13 296 22 585 55 12
16 16 16 23.5 1.44 18.5 18 19.62 23.5 16 1.12 21.25 19.62 18 1.25 1 5 1/2 6 246 15 388 29 714 66 12
18 18 18 25 1.56 21 20 20.94 25 16 1.25 22.75 20.94 20 1.38 1  1/8 6 6 1/2 270 17 362 25 711 67 12
20 20 20 27.5 1.69 23 22 23.19 27.5 20 1.25 25 23.19 22 1.38 1  1/8 6 1/4 7 311 19 434 31 840 79 12
24 24 24 32 1.88 27.25 26.25 27.5 32 20 1.38 29.5 27.5 26.25 1.5 1  1/4 7 7 3/4 423 25 574 40 1046 100 12

Dimensions are in inches. Weights are in pounds.

Weight Chart Of Long Weld Neck Flanges
Nominal Pipe Sizes (NPS) Slip On (SORF) Threaded (NPT) Socket Weld (SWRF) Lap Joint (Loose) Blind (BLRF) Weld Neck (WRNR)
½ 1 1 2 1 2 2
¾ 2 2 2 2 2 2
1 2 2 2 2 2 3
3 3 3 3 3 3
3 3 3 3 4 4
2 5 5 5 5 5 6
8 8 8 8 7 10
3 9 9 9 9 9 11.5
11 12 11 11 13 12
4 13 13 13 13 17 16.5
5 15 15 15 15 20 21
6 19 19 19 19 27 26
8 30 30 30 30 47 42
10 43 43 43 43 70 54
12 64 64 64 64 123 88
14 90 90 90 105 140 114
16 106 98 98 140 180 140
18 130 130 130 160 220 165
20 165 165 165 195 285 197
22 185 185 185 245 355 225
24 220 220 220 275 430 268

Price List Of Long Weld Neck Flanges
Stainless Steel Long Weld Neck Flanges USD $2.07 - $10.08 / Piece (FOB Price) on request
High Nickel Alloys Long Weld Neck Flanges USD $8.12 - $20.22 / Piece (FOB Price) on request
Duplex & Super Duplex Long Weld Neck Flanges USD $10.22 - $35.52 / Piece (FOB Price) on request
Cupro Nickel Long Weld Neck Flanges USD $5.21 - $10.50 / Piece (FOB Price) on request
>Carbon Steel Long Weld Neck Flanges USD $2.10 - $7.12 / Piece (FOB Price) on request
Marking and Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All pipes are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.


  • Wooden Boxes
  • Wooden Pallets
  • Shrink-Wrapped
  • Carton Boxes
  • Wooden Boxes
  • Marking and Packing
    Quality Assurance
    Quality Assurance

    At JF Engineering Products LLP, all fasteners are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.


    Testing

    Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report


    • Positive Material Identification - PMI Testing
    • Chemical Analysis - Spectro Analysis
    • Mechanical Testing Such as Tensile, Elongation, Reduction of Area
    • Micro Test
    • Macro Test
    • Hardness Test
    • Pitting Resistance Test
    • Intergranular Corrosion (IGC) Test
    • Flaring Test
    • Flattening Test
    • Hydrostatic Test
    • Hydrogen-Induced Cracking (HIC) Test, NACE TM0284
    • Sulfide Stress Corrosion Cracking (SSC), NACE TM 0177
    • Radiography Test
    • Dye Penetrant Test (DP Test)
    Testing
    SHIPPING POLICY
    SHIPPING POLICY

    Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.

    Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. If fastener is out of stock, orders may take up to 2-4 weeks to ship. JF Engineering Products LLP will notify buyer if this situation occurs.


    Uses & Application

    JF Engineering Products LLP take immensure pleasure in introducing itself as one of the leading Manufacturer & Exporter of high quality fasteners to meet the customer ultimate requirements in the fields of:


  • Construction
  • Bridges
  • Petrochemical Industry
  • Ship Building
  • Engineering
  • General Structural Purposes
  • Offshore and Onshore Services
  • Power Generation Industries
  • Food Processing Industries
  • Oil & Gas Industries
  • Sugar Industries
  • Long Radius Bend
