ANSI/ASME B16.9 Buttweld Short Stub End – ASTM A403 SS 304/304L

ANSI/ASME B16.9 Buttweld Short Stub End, Stainless steel 309/309S Buttweld Short Stub End, ASTM A403 SS 316/316L/316H Buttweld Short Stub End, Stainless steel 310/310S Buttweld Short Stub End, Alloy Steel ASTM A234 WP12 Buttweld Short Stub End, Alloy Steel ASTM A234 WP22 Buttweld Short Stub End, Alloy Steel ASTM A234 WP91 Buttweld Short Stub End, Carbon Steel A234 WPW Buttweld Short Stub End, Carbon Steel A234 WPHY 42, WPHY 46, WPHY 52 Buttweld Short Stub End

JF Engineering Ltd is producer, Stockists & dealer of premium quality range of ANSI/ASME B16.9 Butt weld Short Stub End that are manufactured under the expert guidance of our experienced team. We believes in building the relationship with the client by offering the best quality product in reasonable price. We ensure that all the proucts deliver on time with great service. This Short Stub End has amazing features such as sturdy, durable and corrosion resistance. We supply the best product that is ANSI/ASME B16.9 Butt weld Short Stub End of varied size and standard.

The Short Stub End are manufactured in all standard dimensions. Our high quality Short Stub End Butt weld pipe fittings are tested and verified for durability, accuracy and precision. We are the provider of Butt weld Short Stub End that are used for connecting pipes of different diameters and find wide applications in various chemicals, construction industries, paper, cement & ship builders. Stub Ends are introduced in pairs and mated together with two Lap Joint Stubends. The surface of the stub end has a phonographic serrated gasket surface which prevents outflow at the joint.



Specification - ASME B16.9 Seamless Welding Fittings

Buttweld Short Stub End

Standards: ANSI – B 16.9 ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’ API 590-605 ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings” ASME B16.25 – ‘Buttwelding Ends’ ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’ MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
Schedule: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Sizes: 1/2"NB TO 48"NB IN
Materials: Monel :
Grade: Monel 400, Monel K500, Monel R-405
Nickel :
Grade: Nickel 200, Nickel 201
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy :
Grade: Incoloy 800, Inconel 800H, 800HT
Hastalloy :
Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy c276, Hastalloy X
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Stainless Steel :
Grade: ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Alloy Steel:
Grade: ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Carbon Steel :
Grade: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Type: Butt Weld (BW)
Dimension: ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

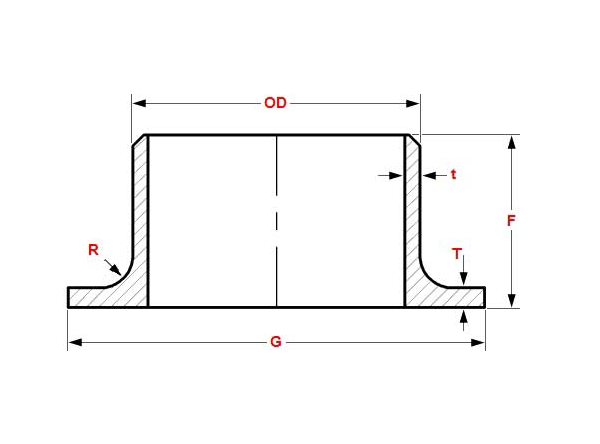

Dimensions Buttweld Short Stub End

Schedule STD

NPSs OD T G F R kg
1/2 21.3 2.77 34.9 76.2 3.18 0.16
3/4 26.7 2.87 42.9 76.2 3.18 0.23
1 33.4 3.38 50.8 101.6 3.18 0.29
42.2 3.56 63.5 101.6 4.76 0.45
48.3 3.68 73 101.6 6.35 0.54
2 60.3 3.91 92.1 152.4 7.94 1
73 5.16 104.8 152.4 7.94 1.5
3 88.9 5.49 127 152.4 9.53 2.1
101.6 5.74 139.7 152.4 9.53 2.5
NPS OD T G F R kg
4 114.3 6.02 157.2 152.4 11.11 3
5 141.3 6.55 185.7 203.2 11.11 5.4
6 168.3 7.11 215.9 203.2 12.70 7.3
8 219.1 8.18 269.9 203.2 12.70 11.6
10 273.1 9.27 323.9 254 12.70 18
12 323.9 9.53 381 254 12.70 21
14 355.6 9.53 412.8 304.8 12.70 28
16 406.4 9.53 469.9 304.8 12.70 34
18 457.2 9.53 533.4 304.8 12.70 39
20 508 9.53 584.2 304.8 12.70 44
24 609.6 9.53 692.2 304.8 12.70 57

Schedule XS

>NPS OD T G F R kg
1/2 21.3 3.73 34.9 76.2 3.18 0.2
3/4 26.7 3.91 42.9 76.2 3.18 0.3
1 33.4 4.55 50.8 101.6 3.18 0.4
42.2 4.85 63.5 101.6 4.76 0.6
48.3 5.08 73 101.6 6.35 0.7
2 60.3 5.54 92.1 152.4 7.94 1.4
73 7.01 104.8 152.4 7.94 2
3 88.9 7.62 127 152.4 9.53 2.9
101.6 8.08 139.7 152.4 9.53 3.4
NPS OD T G F R kg
4 114.3 8.56 157.2 152.4 11.11 4.1
5 141.3 9.53 185.7 203.2 11.11 7.5
6 168.3 10.97 215.9 203.2 12.70 10
8 219.1 12.70 269.9 203.2 12.70 16
10 273.1 12.70 323.9 254 12.70 24
12 323.9 12.70 381 254 12.70 29
14 355.6 12.70 412.8 304.8 12.70 38
16 406.4 12.70 469.9 304.8 12.70 43
18 457.2 12.70 533.4 304.8 12.70 49
20 508 12.70 584.2 304.8 12.70 63
24 609.6 12.70 692.2 304.8 12.70 76

Marking and Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At JF Engineering Products LLP all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report

Shipping Policy

Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.

Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. If ASME B16.9 Short Stub End is out of stock, orders may take up to 2-4 weeks to ship. JF Engineering Products LLP will notify buyer if this situation occurs..

Uses & Application

JF Engineering Products LLP take immensure pleasure in introducing itself as one of the leading Manufacturer & Exporter of high quality ASME B16.9 Short Stub End to meet the customer ultimate requirements in the fields of:

Chemical Oil Mills Petrochemical Mining Refineries Construction
Fertilizers Shipbuilding Power Plant Steel Plant Nuclear Power Offshore
Oil & Gas Defence Paper Ports Breweries Railway
Cement Engineering Co. Sugar & Government Org. etc.
