ANSI/ASME B16.9 Long Radius Piggable Bend

ANSI B16.29 Long Radius Piggable Bend, ASME B16.28 ASTM A53 Long Radius Piggable Bend, ASTM A106 Long Radius Piggable Bend, API 5L SCH 40 long Radius Piggable Bend, SCH 80 long Radius Piggable Bend

This Long radius bend is widely found applications in different industries such as ship building, power plants, water treatment plants, refineries and petrochemical industries. These are accessible in various size, class, type and schedule according to the needs of the clients. JF engineering is one of the main maker of value item that is ANSI/ASME Long Radius Piggable Bend. We guarantee the quality item will be conveyed in the market. With the times of involvement, we offer high caliber with lower cost and the best service.

Bending is used to change the direction of run of pipe. The bend consists of various types such as 3D, 5D, hot bend, LR bend, piggable bend available in various materials. Pipe bending is now available in an easy way by using the right machine, tool, material and lubrication. There is a little difference in bend and elbows, bend is usually used in changing the direction of the piping while elbows have limitations to size, angle and bend radius. Common materials used for pipe bending are carbon steel, stainless steel and alloy steel. We are providing Buttweld pipe fittings of high quality standards.

Specification - ASME B16.9 Long Radius Bend

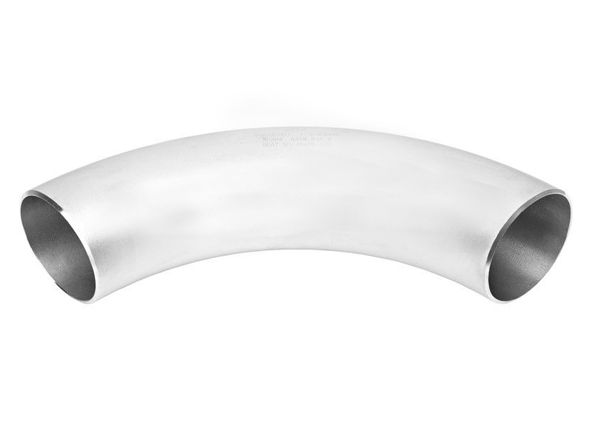

Long Radius Piggable Bend

Standards: ANSI B16.9 / 16.28, ASTM A53/A106, API 5L, ASME B36.10M—1996, DIN2605 / 2615 / 2616, JIS P2311/2312
Schedule: SGP, STD, SCH40, SCH80, SCH160. XS,XXS and so on
Sizes: 2"–24"
Materials: Carbon steel , alloy steel, stainless steel
Type: SEAMLESS / WELDED/ FABRICATED

Marking and Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At JF Engineering Products LLP all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report

Shipping Policy

Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.

Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. If ASME B16.9 Long Radius Piggable Bend is out of stock, orders may take up to 2-4 weeks to ship. JF Engineering Products LLP will notify buyer if this situation occurs..

Uses & Application

JF Engineering Products LLP take immensure pleasure in introducing itself as one of the leading Manufacturer & Exporter of high quality ASME B16.9 Long Radius Piggable Bend to meet the customer ultimate requirements in the fields of:

Chemical Oil Mills Petrochemical Mining Refineries Construction
Fertilizers Shipbuilding Power Plant Steel Plant Nuclear Power Offshore
Oil & Gas Defence Paper Ports Breweries Railway
Cement Engineering Co. Sugar & Government Org. etc.
