JF Engineering Products LLP

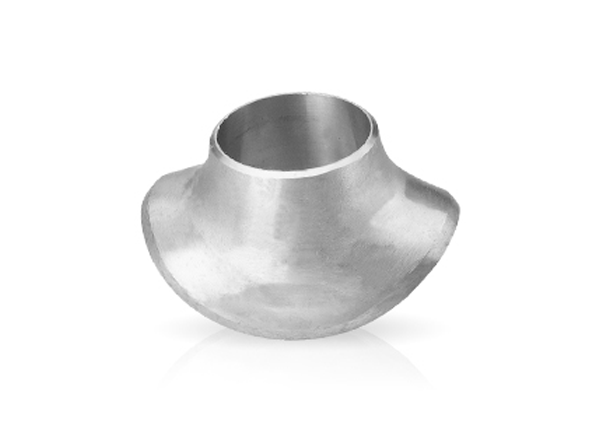

Swept Outlets – Stainless steel ASTM A182 F 304, 304H, 316L, 317L

Stainless steel Swept Outlets ASTM A182 F304, SS Swept Outlets ASTM A182 321/347, Duplex Steel ASTM A182 F44/F45/F51 Swept Outlets, Duplex Steel ASME SA F53/F55/F60 Swept Outlets, Alloy Steel ASTM A182 F1/F5/F9 Swept Outlets, Alloy Steel ASTM A182 F11/F22/F91 Swept Outlets, Carbon Steel ASTM A105 F42/F46/52 Swept Outlets, Carbon steel ASTM A694 F56/F60/F65 Swept Outlets

Olets are known as branch connection fittings used to provide an outlet from a larger pipe to a smaller one. Swept Outlets is a formed, necessarily reinforced, butt-weld branch bond with a low stress intensification factor for low anxiety and long fatigue life. The attachment weld is easily examined by radiography, ultrasound and other standard non-destructive techniques. Fabricated to meet your specific reinforcement requirements.

JF Engineering deliver Swept Outlets that are extensively used in various industry applications available in several size, grades, dimensions and grades in all materials such as stainless steel, duplex steel, alloy steel and carbon steel. The offered product are appreciated in the market because of the best performance and good quality of the products.

Features of Swept Outlets:
  • Abrasion resistance
  • Corrosion resistance
  • Durability
  • Dimensional accuracy
  • High performance
  • Low Maintenance
  • Long Service Life

Being a prominent organization of this domain, we are engrossed in offering a wide range of Latrolet to the clients. The offered collection of products are manufactured and designed by skillful professionals using high grade materials and advanced technology. Offered products are highly commended among the clients for their wide applications and optimum performance. In order to provide highest client satisfaction, we have priced reasonably these products without compromising with the quality.

Specification - ASTM A105 Swept Outlets

Swept Outlets

Size: 1/2"NB TO 24"NB IN
Class: 3000 LBS, 6000 LBS, 9000 LBS & Required Schedule
Type: Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Materials: Stainless Steel Swept Outlets – SS Swept Outlets
ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Duplex Steel Swept Outlets
ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61.

Alloy Steel Swept Outlets – AS Swept Outlets
ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91

Carbon Steel Swept Outlets – CS Swept Outlets
ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70

Low Temperature Carbon Steel Swept Outlets – LTCS Swept Outlets
A350 LF3/A350 LF2
Value Added Service: Hot Dip Galvanizing
Electro polish
Dimension - Swept Outlets

Run Size

Outlet Size




6 to 36 1 1/4 1 1/4 4
6 to 36 1 1/2 1 3/4 5 1/2
6 to 36 2 1 1/2 5 1/2
6 to 36 3 1 21/32 7
6 to 36 4 2 1/32 8 3/4
10 to 36 6 2 11/16 13
12 to 36 8 3 15
16 to 36 10 3 1/8 18 1/2
16 to 36 12 3 5/16 20 1/2
20 to 36 14 3 5/8 24
24 to 36 16 3 3/4 28
24 to 36 18 4 5/8 31
24 to 36 20 5 1/8 33
30 to 36 24 5 5/8 38

Marking and Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All olets are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At JF Engineering Products LLP, all fittings and olets are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report

Shipping Policy

Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.

Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. If Olets is out of stock, orders may take up to 2-4 weeks to ship. JF Engineering Products LLP will notify buyer if this situation occurs..

Uses & Application

JF Engineering Products LLP take immensure pleasure in introducing itself as one of the leading Manufacturer & Exporter of high quality Olets to meet the customer ultimate requirements in the fields of:

Chemical Oil Mills Petrochemical Mining Refineries Construction
Fertilizers Shipbuilding Power Plant Steel Plant Nuclear Power Offshore
Oil & Gas Defence Paper Ports Breweries Railway
Cement Engineering Co. Sugar & Government Org. etc.
