JF Engineering Products LLP

Flanges

JF Engineering Products LLP manufacturer & exporter of Flanges availbale in various forms and size, standards like ASME B16.5 flanges, ASME B16.47 Flanges and ASME B16.36 flanges.These all standards availble in all type of flanges like Weld Neck Flanges, Blind Flanges, Spectacle Blind flanges, Slip on flanges, Orifice flanges and Threaded Flanges etc.

We have specialization to manufacture customized Flange per customers’ specifications, we welcome small quantity order.

Orifice Flange

JF Engineering Products LLP is Manufacturer, Stockists & Supplier of premium quality range of Orifice Flanges, Stainless Steel Flanges & Other Stainless Steel Pipe fittings that are manufactured under the expert guidance of our diligent workforce. we are highly experienced company in Orifice Flanges & other pipe fittings.

Our Orifice Flanges & Other Fitting products are manufactured using quality material and go through a rigorous quality check at all stages of production to ensure quality.

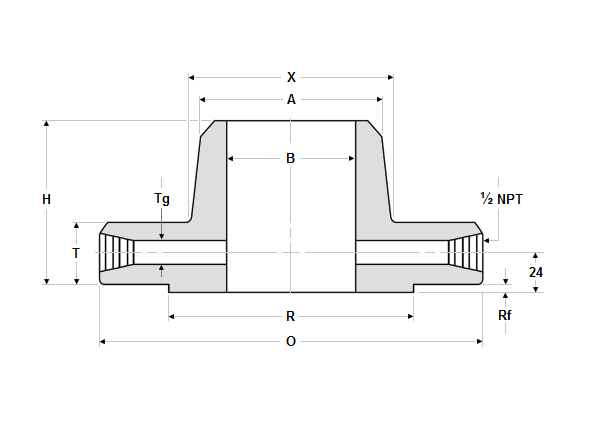

Dimension - ASME B16.36 Orifice Flanges RF

Class 2500 NPS 1-24

NPS DIA
RF
OUT
SIDE
DIA
MIN
THK
FLG
HGT
FLG
HUB
DIA
HUB
DIA
DIA OF
TAB
R O T H X A Tg
1 50.8 160 38.1 92 57 33.5 6.4
73.0 205 44.5 111 79 48.3 6.4
2 92.1 235 50.8 127 95 60.3 6.4
104.8 265 57.2 143 114 73.0 6.4
3 127.0 305 66.7 168 133 88.9 9.5
4 157.2 355 76.2 190 165 114.3 12.7
6 215.9 485 108.0 273 235 168.3 12.7
8 269.9 550 127.0 318 305 219.1 12.7
10 323.8 675 165.1 419 375 273.0 12.7
12 381.0 760 184.2 464 441 323.8 12.7
NPS R O T H X A Tg
DIA
RF
OUT
SIDE
DIA
MIN
THK
FLG
HGT
FLG
HUB
DIA
HUB
DIA
DIA OF
TAB
NPS BOLT
CIRCLE
NO OF
BOLTS
DIA OF
HOLES
DIA
STUD
BOLTS
STUD
BOLT
LENGTH
1 108.0 4 1 7/8 150
146.0 4 1.1/8 180
2 171.4 8 1.1/8 1 185
196.8 8 1.1/8 205
3 228.6 8 1.3/8 230
4 273.0 8 1.5/8 260
6 368.3 8 2.1/8 2 350
8 438.2 12 2.1/8 2 385
10 539.8 12 2 5/8 490
12 619.1 12 2 7/8 2.3/4 540
NPS BOLT
CIRCLE
NO OF
BOLTS
DIA OF
HOLES
DIA
STUD
BOLTS
STUD
BOLT
LENGTH

General Notes:

  • Dimensions are in millimeters, except for bolts and bolt holes.
  • Height of Raised Face (RF) in CLASS 2500 is 7 mm
  • All other dimensions are in accordance with ASME B16.5.
  • Ring joint flanges larger than NPS 3 will require angular meter taps.

Notes:

  • Other NPT sizes may be furnished if required.
  • Bolt lengths for raised face flanges include allowance for orifice and gasket thickness of 6 mm (0.25 in.) for NPS 1 to NPS 12. Bolt lengths for ring-type joint flanges include allowance of 15 mm (0.62 in.) for NPS 1 to NPS 3.
  • Bore (B) is to be specified by the purchaser.
  • The length of the Stud Bolt does not include the height of the chamfers (points).



Dimension - ASME B16.36 Orifice Flanges RTJ

Marking and Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At JF Engineering Products LLP, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report

Shipping Policy

Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.

Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. If Flange is out of stock, orders may take up to 2-4 weeks to ship. JF Engineering Products LLP will notify buyer if this situation occurs..

Uses & Application

JF Engineering Products LLP take immensure pleasure in introducing itself as one of the leading Manufacturer & Exporter of high quality ASME B16.5 Orifice Flange to meet the customer ultimate requirements in the fields of:

Chemical Oil Mills Petrochemical Mining Refineries Construction
Fertilizers Shipbuilding Power Plant Steel Plant Nuclear Power Offshore
Oil & Gas Defence Paper Ports Breweries Railway
Cement Engineering Co. Sugar & Government Org. etc.
