| Stainless Steel | Tradename | UNS no. | Werkstoff No. |
| 317L | 317L Stainless | S31703 | 1.4438 |

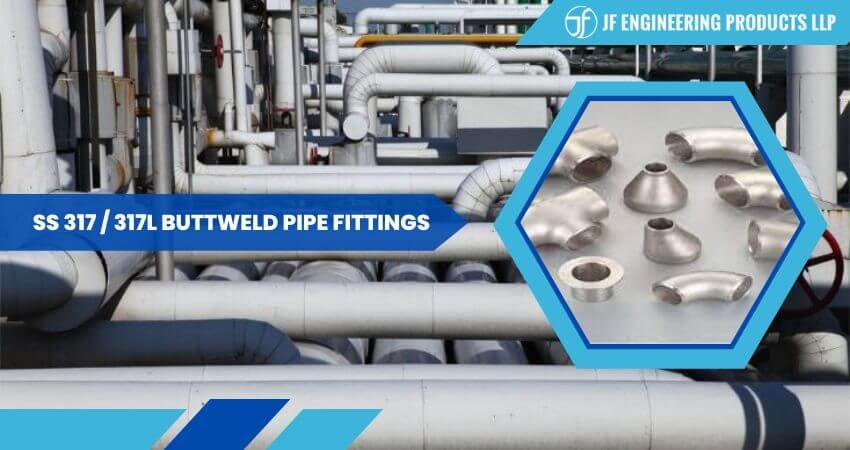

JF Engineering Products LLP is a leading maker and dealer of stainless steel 317L buttweld pipe fittings and 317L flanges, tee, reducer and bends. We have a complete stock of these stainless pipe fittings such as SS 317L elbow, SS 317L reducer, SS 317L Tee, SS 317L Cross, SS 317L Flanges and SS 317L Pipe Bends available according to the standard ASTM A403/ A182/ A240 and ANSI B16.9/16.28/ B16.25/ MSS SP-43.
Stainless steel 317L are the second most commonly used stainless steel grades after 304/304L, being a higher version of 304 with addition of molybdenum and slightly higher content of nickel. The features of 317 are similar to that of 304, the only difference is that 317 is stronger at elevated temperatures. 317L Stainless Stel is also known as UNS S31700 and has a low caron austenitic nickel-chromium stainless steel with additions of molybdenum and copper and that is why They are used especially in severe corrosive conditions.
The key features of Stainless Steel 317L| Specification | ASTM A182 / A403 & ASME SA182 / SA403 |
| Type | Seamless / Welded / Fabricated |
| Variants | 317L |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Range | ½”NB to 48”NB in Sch 10s, 40s, 80s, 160s, XXS. |
| Dimensions | ANSI/ASME B16.9, B16.28, MSS-SP-43. |
Seamless/ Welded 100% Radiography Tested
| Products | Size | |
| SS 317L Elbows – Long Radius | SS 317L Stub Ends |
Sizes 1/2″ – 48″ |
| SS 317L Elbows – Short Radius | SS 317L Crosses | |
| SS 317L Reducing Elbows | SS 317L Reducing Crosses | |
| SS 317L 45° Elbows | SS 317L 180° LR Return Bends | |
| SS 317L Tees | SS 317L 180° SR Return Bends | |
| SS 317L Fabricated Tees | SS 317L Pipe Bends / Piggable Bends | |
| SS 317L Reducers | SS 317L Couplings | |
| SS 317L Concentric Reducers | SS 317L Pipe Nipples | |
| SS 317L Eccentric Reducers | SS 317L Forged/Plate Cut Rings | |
| SS 317L 3D Elbow | SS 317L End Caps | |
| SS 317L 5D Elbow | SS 317L Forged / Plate Circles | |
Threaded and Socket Weld Pipe Fittings
| Products | Size | |
| SS 317L 90° Elbows | SS 317L Couplings |
Sizes 1/8″ – 4″ Pressure Ratings – |
| SS 317L 45° Elbows | SS 317L Reducers | |
| SS 317L Street Elbows | SS 317L Inserts | |
| SS 317L Tees | SS 317L Caps | |
| SS 317L Crosses | SS 317L Unions | |
Forged and Plate Flanges
| Specification | ASTM A182 / A240 & ASME SA182 / SA240 |
| Grade | 317L |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | 1/8” to 36″ |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Product | Size | |
| SS 317L Slip-On Flanges | SS 317L Threaded Flanges |
1/8″ – 36″ Raised Face or Flat Face |
| SS 317L Weld Neck Flanges | SS 317L Socket Weld Flanges | |
| SS 317L Blind Flanges | SS 317L Reducing Flanges | |
| SS 317L Lap Joint Flanges | SS 317L Plate Flanges | |
Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All fittings and flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.
At JF Engineering Products LLP, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
Test Certificates: Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
