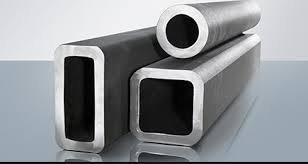

Seamless Hollow Section

ASTM A554 SS Seamless Hollow Sections Suppliers, Stainless Steel SHS Pipe in Mumbai, SS Seamless Tube, ASME A554 Stainless Steel Seamless Hollow Section. SS SHS Tubes Distributors in India, Stainless Steel Seamless Box Section Exporters, ASTM A554 Stainless Steel Seamless Pipe. Stainless Steel Structural Seamless Hollow Section, SS Seamless Seamless Hollow Tubing, SS Welded Seamless Section Tubes, Stainless Steel ERW SHS Pipes Stockists in Mumbai, India.

Cold Formed Square Hollow Section Specification

Standard : BS EN 10219 - Cold Formed Welded Structural Hollow Sections of Non-alloy and Fine Grain Steels
SHS (Square Hollow Sections) Sizes : 20*20mm-400*400mm
Wall Thickness : 0.5mm - 25mm
Length : 6000-14000 mm
Type : Seamless/ Welded / ERW
Dimensional Tolerances : Thickness : (All sizes +/- 10%)
Packing : In bundles, Anticorrosion heat preservation, Varnish coating, Ends can be bevelled or square cut, End Capped Certification & supplementary test, Finishing & Identity Mark
Available Grades : S235JRH, S275J0H, S275J2H, S355J0H, S355J2H, S355J2+N, IS 4923 / ASTM A500 / As Per Requirement
Surface Protection: Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized

Cold Formed Square Hollow Section Sizes
Size mm kg/m Size mm kg/m
20 x 20 x 2.0 1.12 20 x 20 x 2.5 1.35
25 x 25 x 1.5 1.06 25 x 25 x 2.0 1.43
25 X 25 X 2.5 1.74 25 X 25 X 3.0 2.04
30 X 30 X 2.0 1.68 30 X 30 X 2.5 2.14
30 X 30 X 3.0 2.51 40 x 40 x 1.5 1.81
40 x 40 x 2.0 2.31 40 x 40 x 2.5 2.92
40 x 40 x 3.0 3.45 40 x 40 x 4.0 4.46
40 x 40 x 5.0 5.40 50 x 50 x 1.5 2.28
50 x 50 x 2.0 2.93 50 x 50 x 2.5 3.71
50 x 50 x 3.0 4.39 50 x 50 x 4.0 5.72
50 x 50 x 5.0 6.97 60 x 60 x 3.0 5.34
60 x 60 x 4.0 6.97 60 x 60 x 5.0 8.54
60 x 60 x 6.0 9.45 70 x 70 x 3.0 6.28
70 x 70 x 3.6 7.46 70 x 70 x 5.0 10.11
70 x 70 x 6.3 12.50 70 x 70 x 8 15.30
75 x 75 x 3.0 7.07 80 x 80 x 3.0 7.22
80 x 80 x 3.6 8.59 80 x 80 x 5.0 11.70
80 x 80 x 6.0 13.90 90 x 90 x 3.0 8.01
90 x 90 x 3.6 9.72 90 x 90 x 5.0 13.30
90 x 90 x 6.0 15.76 90 x 90 x 8.0 20.40
100 x 100 x 3.0 8.96 100 x 100 x 4.0 12.00
100 x 100 x 5.0 14.80 100 x 100 x 5.0 14.80
100 x 100 x 6.0 16.19 100 x 100 x 8.0 22.90
100 x 100 x 10 27.90 120 x 120 x 5 18.00
120 x 120 x 6.0 21.30 120 X 120 X 6.3 22.30
120 x 120 x 8.0 27.90 120 x 120 x 10 34.20
120 X 120 X 12 35.8 120 X 120 X 12.5 41.60
140 X 140 X 5.0 21.10 140 X 140 X 6.3 26.30
140 X 140 X 8 32.90 140 X 140 X 10 40.40
140 X 140 X 12.5 49.50 150 X 150 X 5.0 22.70
150 X 150 X 6.3 28.30 150 X 150 X 8.0 35.40
150 X 150 X 10 43.60 150 X 150 X 12.5 53.40
150 X 150 X 16 66.40 150 X 150 X 16 66.40
180 X 180 X 5 27.40 180 X 180 X 6.3 34.20
180 X 180 X 8 43.00 180 X 180 X 10 53.00
180 X 180 X 12.5 65.20 180 X 180 X 16 81.40
200 X 200 X 5 30.50 200 X 200 X 6 35.8
200 x 200 x 6.3 38.2 200 x 200 x 8 48.00
200 x 200 x 10 59.30 200 x 200 x 12.5 73.00
200 x 200 x 16 91.50 250 x 250 x 6.3 48.10
250 x 250 x 8 60.50 250 x 250 x 10 75.00
250 x 250 x 12.5 92.60 250 x 250 x 16 117.00
300 x 300 x 6.3 57.90 300 x 300 x 8 73.10
300 x 300 x 10 57.90 300 x 300 x 8 90.70
300 x 300 x 12.5 112.00 300 x 300 x 16 142.00
350 x 350 x 8 85.70 350 x 350 x 10 106.00
350 x 350 x 12.5 132.00 350 x 350 x 16 167.00
400 x 400 x 10 122.00 400 x 400 x 12 141.00
400 x 400 x 12.5mm 152.00 400 x 400 x 16 192

Marking and Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At JF Engineering Products LLP, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report

Shipping Policy

Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.

Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. If ANSI/ASME B16.9 Butt weld Pipe Cap is out of stock, orders may take up to 2-4 weeks to ship. JF Engineering Products LLP will notify buyer if this situation occurs..

Uses & Application

Chemical Oil Mills Petrochemical Mining Refineries Construction
Fertilizers Shipbuilding Power Plant Steel Plant Nuclear Power Offshore
Oil & Gas Defence Paper Ports Breweries Railway
Cement Engineering Co. Sugar & Government Org. etc.
