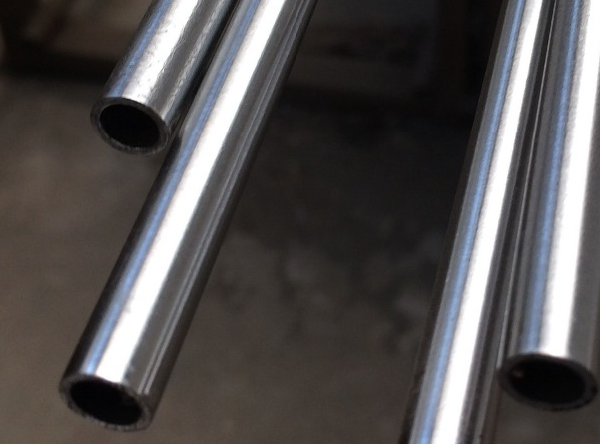

Precision Drawn Tube

Precison Drawn Tubes Supplier Exporter Manufacturers and Stockist
We, at JF Engineering Products LLP offer an extensive variety of Precison Drawn Tubes manufactured out of premium metal other products and is accessible in changing determinations with respect to measurement, material evaluation and diverse fitting closures. In the World of Pipe and tubing solutions business JF Engineering Products LLP is recognized to be Domestic leader in Supplier Exporter and Manufacturer of Precison Drawn Tubes. Company manufacture and supply Qualitative metal products like piping and tubing all over the world to meet the necessities of Customers. Leading Manufacturer and Exporter from Mumbai, JF Engineering Products LLP offer Precison Drawn Tubes that are most commonly used in several industrial purposes certified to ensure the excellent range of quality and performance

We ensure that the clients get the best product at the cheapest cost from us. We make sure that the order is delivered at the right time in the right place. We have built trust over the years for our best quality services and always look forward to build ling term business relationship with our clients. We are committed to quality and service.

Features :

  • High strength
  • High resistance to pitting, crevice corrosion resistance
  • High resistance to stress corrosion cracking, corrosion fatigue and erosion
  • Good sulfide stress corrosion resistance
  • Low thermal expansion and higher heat conductivity than austenitic steels
  • Good workability and weldability.
  • High energy absorption
  • Excellent finish
  • Durable

Specifications :

Alloy: Alloys 80A, Alloys 90, Alloys 901, Alloy 75, Alloy 263
Size: 15mm NB to 150mm NB (1/2” to 6”), 7″ (193.7mm OD to 20″ 508mm OD)
Form Round, Square, Rectangular, Coil, U Tube,
Length As per customer’s requirement (Maximum upto 7 meters)
End Plain End, Bevelled End
Type Seamless / ERW / Welded
Surface Black painting, varnish paint, anti rust oil, hot galvanized, cold galvanized, 3PE
Test Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield
strength, Elongation), Technical Properties (Flattening Test, Flaring Test, Bending Test, Hardness Test, Blow Test, Impact
Test etc), Exterior Size Inspection
OD Range 1.250″ – 6.000″ (30-150mm)
Wall Range 0.095″ – 1.000″ (.2.5-25mm)
Mill Test Certificate EN 10204/3.1B

Chemical Analysis :

Grade Ni Cr Ti Si Cu Fe C Al Mn Co B Zr S
Nimonic 90 Bal 18.0-21.0 2.00-3.00 1.0max 0.20max 1.50 max 0.13 max 2.00 max 1.0max 15.00-21.00 0.02 max 0.15 max 0.015 max

Mechanical Properties :

Temperature ksi MPa
595°C / 1100°F 94 650
650°C / 1200°F 73 500
705°C / 1300°F 51 350
760°C / 1400°F 32 220
815°C / 1500°F 16 110

Physical Properties :

Density 8.18g/cm³
Melting Point 1370°C
Coefficient of Expansion 12.7 μm/m °C (20 – 100°C)
Modulus of Rigidity 82.5 kN/mm²
Modulus of Elasticity
(Annealed + Aged)
(Spring Temper + Aged)
213 kN/mm²
227 / 240 kN/mm²

Applications :

  • Use in Heat Exchangers
  • Use in Instrumentation
  • Use in Hydraulic & Pneumatic system
  • Use in Nuclear Power Plants
  • Use in Automotive industries
  • Use in Aerospace
  • Use in Medical
  • Use in Pharmaceutical
  • Use in Oil coolers
  • Use in Economizers
  • Use in Condenser
  • Use in LNGs
  • Use in Pulp and paper
  • Use in Offshore construction

We have long experience in the business of manufacturers of Precison Drawn Tubes. We have established state of the art manufacturing facilities and have the best technology available for the manufacturing process along with the best technical staff. Our raw materials are selected and purchased after a vigorous quality control check has been done by our research team. So having all these factors on our sides we ensure that all our clients whether small business owners or big parties should get the best possible deal from us.We strive to build excellent professional relationship with all our clients. Our objective is to provide excellent services to our clients. We understand that for our vision of growth we have to deliver the best quality Tubing Products and services consistently. Our constant endeavor is to excel in all the aspects of manufacturing, packaging, shipment and export of the Precison Drawn Tubes
