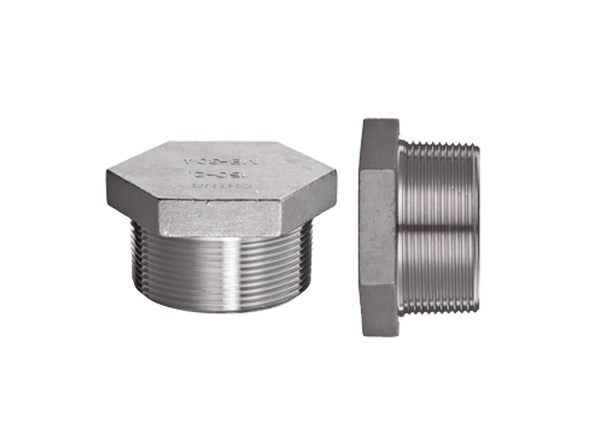

ASME/ANSI B16.11 Forged Plug Manufacturer – ASTM A182 304/304H

ASTM A182 F316/316L forged plug fittings, stainless steel ANSI B16.11 317L forged plug , ASME B16.11 SS 321/347 forged fittings plug, Duplex steel ASTM A182 F44/F45/F51 forged plug, ASTM A182 F53/F55/F61 forged plug, Carbon Steel ASTM A105 F42/F46/F52 forged plug, ASTM A694 F56/F60/F65 forged plug, Alloy steel ASTM A182 F1/F5/F9 Forged Plug fittings, ASME SA182 F11/F22/F91 forged plug

JF engineering is the leaading exporter of ANSI/ASME B16.11 Forged fittings plug available in different size, dimension and specification as per the clients requirements. These plugs are easy to install pipe plugs for isolation of piping systems during maintenance, repair and testing. These plugs are used in various applications such as chemical processing, cement industry, petrochemical and oil refineries. We are well-known organization in manufacturing forged plug and stock large range of all type of plug.

Pipe plugs are defined as cap end of fractional tubes used in a large number of industries. These pipe plugs are designed to insert into the end of tubing to dead end the flow. The pipe plugs are an easy and cost efefctive way to plug your pipe. Plugs performs varieties of function such as stopping flow in a pipeline and downstream pipeline acceptance testing.

Specification - ASME B16.11 Forged Plug

Forged Plug

Size: 1/2"NB TO 4"NB IN
Class: 3000 LBS, 6000 LBS, 9000 LBS
Type: Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form: Hex Plug, Square Plug.
Materials: Stainless Steel Forged Coupling – SS Forged Coupling
Grade : ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Duplex Steel Forged Coupling
Grade : ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel Forged Coupling - CS Forged Coupling
Grade : ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70

Low Temperature Carbon Steel Forged Coupling - LTCS Forged Coupling
Grade : A350 LF3/A350 LF2

Alloy Steel Forged Coupling - AS Forged Coupling
Grade : ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91

Value Added Service: Hot Dip Galvanizing
Electro polish

Dimensions Forged Plug

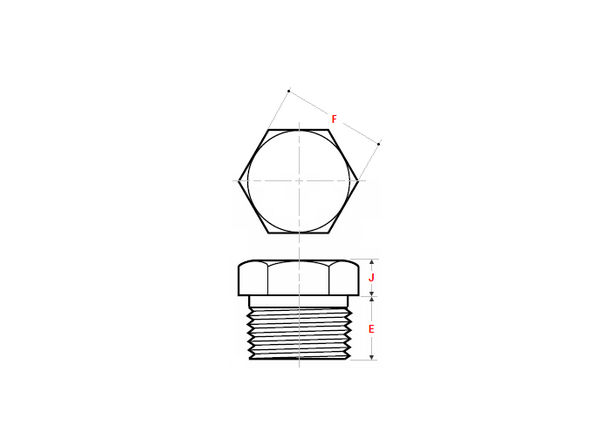

Hex Plug - NPS 1/2 to 4

NPS Minimum
Length
E
Minimum
Hex Height
J
Nominal
F
1/2 14 8 22
3/4 16 10 27
1 19 10 35
21 14 44.5
21 16 51
2 22 18 63.5
27 19 76
3 28 21 89
4 32 25 117.5
NPS Minimum
Length
E
Minimum
Hex Height
J
Nominal
F

Square Head Plug - NPS 1/2 to 4

NPS Minimum
Length
E
Minimum
Square Height
C
Minimum
Width Flats
B
1/2 14 10 14
3/4 16 11 16
1 19 13 21
21 14 24
21 16 28
2 22 18 32
27 19 36
3 28 21 41
4 32 25 65
NPS Minimum
Length
E
Minimum
Square Height
C
Minimum
Width Flats
B

Round Head Plug - NPS 1/2 to 4

NPS Minimum
Length
A
Nominal
Head Diameter
D
Minimum
Length
E
1/2 44 21 14
3/4 44 27 16
1 51 33 19
51 43 21
51 48 21
2 64 60 22
70 73 37
3 70 89 28
4 76 114 32
NPS Minimum
Length
A
Nominal
Head Diameter
D
Minimum
Length
E

Marking and Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At JF Engineering Products LLP all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report

Shipping Policy

Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.

Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. If ASME B16.11 Forged Plug is out of stock, orders may take up to 2-4 weeks to ship. JF Engineering Products LLP will notify buyer if this situation occurs..

Uses & Application

JF Engineering Products LLP take immensure pleasure in introducing itself as one of the leading Manufacturer & Exporter of high quality ASME B16.11 Forged Plug to meet the customer ultimate requirements in the fields of:

Chemical Oil Mills Petrochemical Mining Refineries Construction
Fertilizers Shipbuilding Power Plant Steel Plant Nuclear Power Offshore
Oil & Gas Defence Paper Ports Breweries Railway
Cement Engineering Co. Sugar & Government Org. etc.
