ANSI/ASME B16.9 BUTTWELD 45° ELBOW - SS ASTM A403 304L, 316L

ANSI B16.9 Monel 400 Buttweld 45° Elbow, monel K500 buttweld 45° Elbow pipe fitting, nickel 200 Buttweld 45° Elbow, nickel 201 Buttweld 45° Elbow, Inconel 600 Buttweld 45° Elbow, inconel 601 Buttweld 45° Elbow, Inconel 625 Buttweld 45° Elbow, Inconel 718 Buttweld 45° Elbow, Incoloy 800 Buttweld 45° Elbow, Incoloy 800H Buttweld 45° Elbow, Incoloy 800HT Buttweld 45° Elbow, Hastalloy C22 Buttweld 45° Elbow, hastalloy C276 Buttweld 45° Elbow, Stainless steel ASTM A403 321 Buttweld 45° Elbow, SS ASTM SA403 309/309S Buttweld 45° Elbow, ASTM A403 317/317L Buttweld 45° Elbow, Alloy Steel ASTM / ASME A/SA 234 WP1 Buttweld 45° Elbow, Alloy Steel ASTM / ASME A/SA 234 WP1 Buttweld 45° Elbow, Carbon Steel ASTM A 234 WPB Buttweld 45° Elbow

Buttweld elbow is a particular standard band pre-created designed pipe connector or pipe joint. It is intended to either be flanged, screwed or welded. We produce all the buttweld elbows in fluctuated size, measurement and grade. These elbows are utilized to alter the course of certain funneling or piping framework. We create and send out amazing piping fittings. You can purchase ANSI/ASME B16.9 buttweld 45 degree elbow. These Buttweld elbow takes after the requirements of the accompanying enterprises, for example, Mining, oil refineries, steel and aluminum fabricating, aviation businesses and development organizations.

Buttweld 45° Elbow roll out a 45 degree improvement of course in the keep running of the pipe. The best producer of alloy steel, carbon steel, duplex steel, Inconel and monel buttweld 45 degree elbow giving a wide selection of colors, grades and details.

Applications of Buttweld 45 degree Elbow:
  • Ventilation facility pipeline
  • Solar energy facility
  • Chemical industrial pipeline
  • Water supply facility
  • Food and Nourishment Industrial Pipeline
  • Agriculture and garden production transporting system
Specification - ASME B16.11 Forged Elbow

45 Degree Elbow

Size: 1/2"NB TO 4"NB IN
Class: 3000 LBS, 6000 LBS, 9000 LBS
Type: Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form: 45 Deg Elbow, 90 Deg Elbow, Forged Elbow, Threaded Elbow, Socket Weld Elbow.
Materials: Stainless Steel Forged Coupling – SS Forged Coupling
Grade : ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Duplex Steel Forged Coupling
Grade : ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel Forged Coupling - CS Forged Coupling
Grade : ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70

Low Temperature Carbon Steel Forged Coupling - LTCS Forged Coupling
Grade : A350 LF3/A350 LF2

Alloy Steel Forged Coupling - AS Forged Coupling
Grade : ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91

Value Added Service: Hot Dip Galvanizing
Electro polish

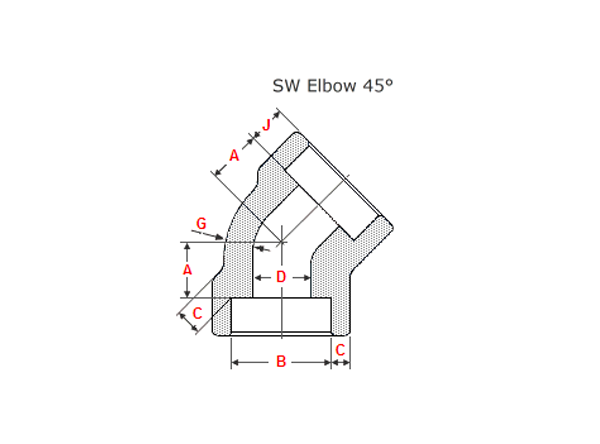

Dimensions 45 Degree Elbow

Dimensions NPS 1/2 to 4 - 45° - Class 3000

NPS Socket
Bore
Depth
Socket
Bore
DIA
Socket
WT
Body
WT
B J D C G
1/2 21.95
21.70
10 16.6
15
4.65
4.10
3.75
3/4 27.30
27.05
13 21.7
20.2
4.90
4.25
3.90
1 34.05
33.80
13 27.4
25.9
5.70
5.00
4.55
42.80
42.55
13 35.8
34.3
6.05
5.30
4.85
48.90
48.65
13 41.7
40.1
6.35
5.55
5.10
2 61.35
61.10
16 53.5
51.7
6.95
6.05
5.55
74.20
73.80
16 64.2
61.2
8.75
7.65
7.00
3 90.15
89.80
16 79.5
46.4
9.50
8.30
7.60
4 115.80
115.45
19 103.8
100.7
10.70
9.35
8.55
NPS B J D C G
Socket
Bore
Depth
Socket
Bore
DIA
Socket
WT
Body
WT
NPS Center to bottom of socket A
45°
1/2 11.5
3/4 12.5
1 14
17
21
2 25
29
3 31.5
4 41.5
NPS 45°
Center to bottom of socket A

Dimensions NPS 1/2 to 2 - 45° - Class 6000

NPS Socket
Bore
Depth
Socket
Bore
DIA
Socket
WT
Body
WT
B J D C G
1/2 21.95
21.70
10 12.5
11
5.95
5.20
4.80
3/4 27.30
27.05
13 16.3
14.8
6.95
6.05
5.55
1 34.05
33.80
13 21.5
19.9
7.90
6.95
6.35
42.80
42.55
13 30.2
28.7
7.90
6.95
6.35
48.90
48.65
13 34.7
33.2
8.90
7.80
7.15
2 61.35
61.10
16 43.6
42.1
10.90
9.50
8.75
NPS B J D C G
Socket
Bore
Depth
Socket
Bore
DIA
Socket
WT
Body
WT
NPS Center to bottom of socket A
45°
1/2 12.5
3/4 14.5
1 17
21
25
2 29
NPS 45°
Center to bottom
of socket
A

Marking and Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At JF Engineering Products LLP all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report

Shipping Policy

Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.

Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. If ASME B16.11 Forged Elbow is out of stock, orders may take up to 2-4 weeks to ship. JF Engineering Products LLP will notify buyer if this situation occurs..

Uses & Application

JF Engineering Products LLP take immensure pleasure in introducing itself as one of the leading Manufacturer & Exporter of high quality ASME B16.11 Forged Elbow to meet the customer ultimate requirements in the fields of:

Chemical Oil Mills Petrochemical Mining Refineries Construction
Fertilizers Shipbuilding Power Plant Steel Plant Nuclear Power Offshore
Oil & Gas Defence Paper Ports Breweries Railway
Cement Engineering Co. Sugar & Government Org. etc.
