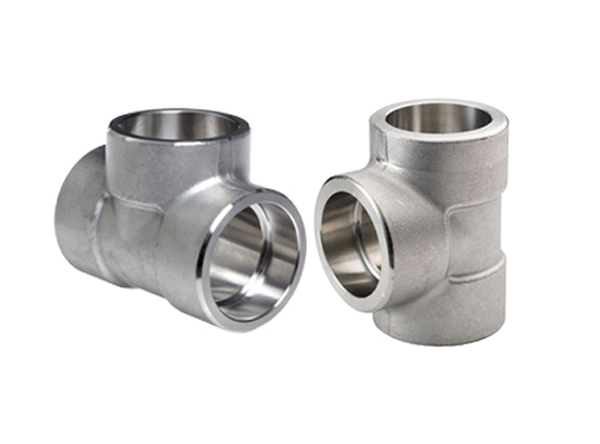

ASME/ANSI B16.11 Forged Fittings Equal Tee – ASTM A182 F304

Stainless Steel ASTM A182 F304/304H Forged fittings equal tee, ASME B16.11 ASTM A182 309/310 forged fittings equal tee, ANSI B16.11 ASTM A182 316/316L/317L Forged Equal tee, ASTM A182 SS 321 forged equal tee, Duplex Steel ANSI A182 F44/F45/F51 Forged fittings equal tee, ASTM SA182 F53/F55/F60 Forged equal tee, Carbon Steel ASTM A105 F42/F46/52 Forged Equal tee, ASTM A694 F56/60/65 equal tee, Alloy Steel ASTM A182 F1/F5/F9 Forged Equal tee, ASTM SA182 F11/F22/F91 Forged Fittings Equal tee

JF Engineering is involved in offering a widespread range of forged equal tees at an affordable rate. We offer these equal tees in different size, specifications, shapes and thicknesses. Tee is a forged fitting used for splitting and changing flow direction of run pipe of 90 degree. Moreover, these tee fittings do not need any special tubing preparation before application. We value our each customer and offered them a qualitative product with an excellent service. We are one of the largest manufacturer of Forged Equal Tee in Mumbai, India.

Forged Equal Tee comes in a category of pipe fittings which is T-shaped having two passages, at 90 degree to the joining to the central line. We ensure you to provide the highest quality product that follows the international norms. These forged equal tee fittings capable of withstanding high pressure and temperature and resisting to corrosion. These forged fittings equal tee are widely used in sugar mills, distilleries, construction industries and cement organizations. These pipe tees are widely used in pipeline networks to transport two-phase fluid mixtures.

Specification - ASME B16.11 Forged Tee

Forged Equal Tee

Size: 1/2"NB TO 4"NB IN
Class: 3000 LBS, 6000 LBS, 9000 LBS
Type: Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form: Reducing Tee, Unequal Tee, Equal Tee, Forged Tee, Cross Tee
Materials: Stainless Steel Forged Coupling – SS Forged Coupling
Grade : ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Duplex Steel Forged Coupling
Grade : ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel Forged Coupling - CS Forged Coupling
Grade : ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70

Low Temperature Carbon Steel Forged Coupling - LTCS Forged Coupling
Grade : A350 LF3/A350 LF2

Alloy Steel Forged Coupling - AS Forged Coupling
Grade : ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91

Value Added Service: Hot Dip Galvanizing
Electro polish

Dimensions Forged Equal Tee

Dimensions NPS 1/2 to 4 - 90°/45° - Class 3000

NPS Socket
Bore
Depth
Socket
Bore
dia
B J D
1/2 21.95
21.70
10 16.6
15
3/4 27.30
27.05
13 21.7
20.2
1 34.05
33.80
13 27.4
25.9
42.80
42.55
13 35.8
34.3
48.90
48.65
13 41.7
40.1
2 61.35
61.10
16 53.5
51.7
74.20
73.80
16 64.2
61.2
3 90.15
89.80
16 79.5
46.4
4 115.80
115.45
19 103.8
100.7
NPS B J D
Socket
Bore
Depth
Socket
Bore
dia
NPS Socket
WT
Body
WT
Center to
bottom
of socket
C G A
1/2 4.65
4.10
3.75 15.5
3/4 4.90
4.25
3.90 19.5
1 5.70
5.00
4.55 22
6.05
5.30
4.85 27
6.35
5.55
5.10 32
2 6.95
6.05
5.55 38
8.75
7.65
7.00 41.5
3 9.50
8.30
7.60 57.5
4 10.70
9.35
8.55 66.5
NPS C G A
Socket
WT
Body
WT
Center to
bottom
of socket

Dimensions NPS 1/2 to 2 - 90°/45° - Class 6000

NPS Socket
Bore
Depth
Socket
Bore
dia
B J D
1/2 21.95
21.70
10 12.5
11
3/4 27.30
27.05
13 16.3
14.8
1 34.05
33.80
13 21.5
19.9
42.80
42.55
13 30.2
28.7
48.90
48.65
13 34.7
33.2
2 61.35
61.10
16 43.6
42.1
NPS B J D
Socket
Bore
Depth
Socket
Bore
dia
NPS Socket
WT
Body
WT
Center to
bottom
of socket
C G A
1/2 5.95
5.20
4.80 19.5
3/4 6.95
6.05
5.55 22.5
1 7.90
6.95
6.35 27
7.90
6.95
6.35 32
8.90
7.80
7.15 38
2 10.90
9.50
8.75 41
NPS C G A
Socket
WT
Body
WT
Center to
bottom
of socket

Marking and Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At JF Engineering Products LLP all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report

Shipping Policy

Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.

Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. If ASME B16.11 Forged Tee is out of stock, orders may take up to 2-4 weeks to ship. JF Engineering Products LLP will notify buyer if this situation occurs..

Uses & Application

JF Engineering Products LLP take immensure pleasure in introducing itself as one of the leading Manufacturer & Exporter of high quality ASME B16.11 Forged Tee to meet the customer ultimate requirements in the fields of:

Chemical Oil Mills Petrochemical Mining Refineries Construction
Fertilizers Shipbuilding Power Plant Steel Plant Nuclear Power Offshore
Oil & Gas Defence Paper Ports Breweries Railway
Cement Engineering Co. Sugar & Government Org. etc.
