ANSI/ASME B16.9 BUTTWELD 180° ELBOW - SS ASME / ASTM SA / A403 SA / A 774

ANSI B16.9 Monel 400 Buttweld 180 degree Elbow, monel K500 Buttweld 180° Elbow pipe fitting, nickel 200 Buttweld 180° Elbow, nickel 201 Buttweld 180° Elbow, Inconel 600 Buttweld 180° Elbow, inconel 601 Buttweld 180° Elbow, Inconel 625 Buttweld 180° Elbow, Inconel 718 Buttweld 180 degree Elbow, Incoloy 800 Buttweld 180° Elbow, Incoloy 800H Buttweld 180° Elbow, Incoloy 800HT Buttweld 180° Elbow, Hastalloy C22 Buttweld 180° Elbow, hastalloy C276 Buttweld 180° Elbow, Stainless steel ASTM A403 321 Buttweld 180° Elbow, SS ASTM SA403 309/309S Buttweld 180° Elbow, ASTM A403 317/317L Buttweld 180° Elbow, Alloy Steel ASTM / ASME A/SA 234 WP1 Buttweld 180° Elbow, Alloy Steel ASTM / ASME A/SA 234 WP1 Buttweld 180° Elbow, Carbon Steel ASTM A 234 WPB Buttweld 180° Elbow

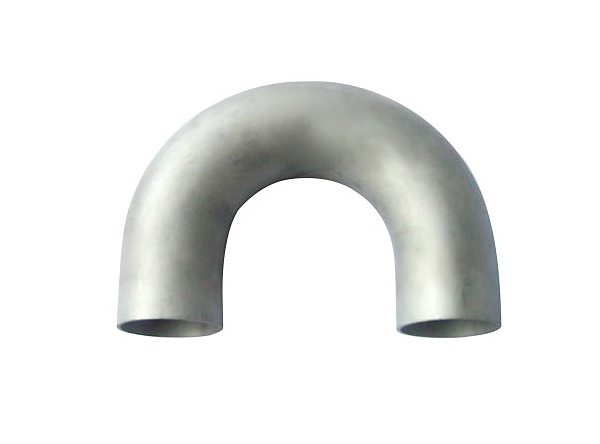

Buttweld elbow is a particular standard band pre-created designed pipe connector or pipe joint. It is intended to either be flanged, screwed or welded. We produce all the buttweld elbows in fluctuated size, measurement and grade. These elbows are utilized to alter the course of certain funneling or piping framework. We create and send out amazing piping fittings. You can purchase ANSI/ASME B16.9 buttweld 180 degree elbow. These Buttweld elbow takes after the requirements of the accompanying enterprises, for example, Mining, oil refineries, steel and aluminum fabricating, aviation businesses and development organizations.

Buttweld 180° Elbows roll out a 180 degree improvement of course in the keep running of the pipe. The function of buttweld 180 degree elbow is same as buttweld 45 degree, the only difference is the meaasurement of dimension. The best producer of alloy steel, carbon steel, duplex steel, Inconel and monel buttweld 180 degree elbow giving a wide selection of colors, grades and details.

Applications of Buttweld 180 degree Elbow:
  • Ventilation facility pipeline
  • Solar energy facility
  • Chemical industrial pipeline
  • Water supply facility
  • Agriculture and garden production transporting system
Specification - ASME B16.9 Seamless Welding Fittings

Buttweld 180° Elbow

Standards: ANSI – B 16.9 ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings’ API 590-605 ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings” ASME B16.25 – ‘Buttwelding Ends’ ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and Returns’ MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications’
Schedule: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Sizes: Diameters – from 21,3 to 711 mm.Wall Thickness – from 2 to 40 mm.
Materials: Monel :
Grade: Monel 400, Monel K500, Monel R-405
Nickel :
Grade: Nickel 200, Nickel 201
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy :
Grade: Incoloy 800, Inconel 800H, 800HT
Hastalloy :
Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy c276, Hastalloy X
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Stainless Steel :
Grade: ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Alloy Steel:
Grade: ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Carbon Steel :
Grade: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Type: Butt Weld (BW)
Dimension: ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313

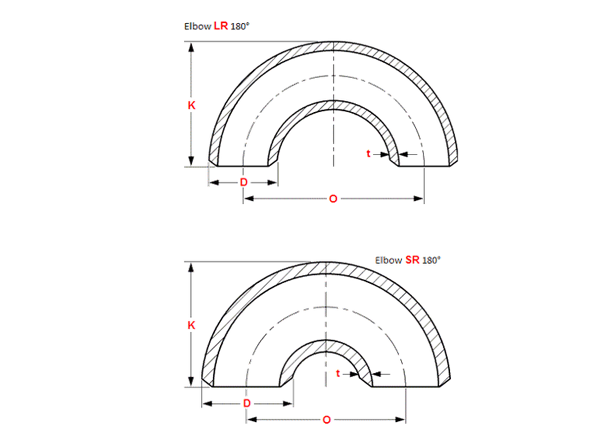

Dimensions Butt Weld Elbows 180°

NPS O.D.
D
180° Long Radius 180° Short Radius
Center to
Center
O
Back to
Face
K
Center to
Center
O
Back to
Face
K
1/2 21.3 76 48 - -
3/4 26.7 76 51 - -
1 33.4 76 56 51 41
42.2 95 70 64 52
48.3 114 83 76 62
2 60.3 152 106 102 81
73 190 132 127 100
3 88.9 229 159 152 121
101.6 267 184 178 140
4 114.3 305 210 203 159
5 141.3 381 262 254 197
6 168.3 457 313 305 237
8 219.1 610 414 406 313
10 273 762 518 508 391
12 323.8 914 619 610 467
14 355.6 1067 711 711 533
16 406.4 1219 813 813 610
18 457 1372 914 914 686
20 508 1524 1016 1016 762
22 559 1676 1118 1118 838
24 610 1829 1219 1219 914

Marking and Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At JF Engineering Products LLP, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report

Shipping Policy

Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.

Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. If ANSI/ASME B16.9 Elbow is out of stock, orders may take up to 2-4 weeks to ship. JF Engineering Products LLP will notify buyer if this situation occurs.

Uses & Application

Chemical Oil Mills Petrochemical Mining Refineries Construction
Fertilizers Shipbuilding Power Plant Steel Plant Nuclear Power Offshore
Oil & Gas Defence Paper Ports Breweries Railway
Cement Engineering Co. Sugar & Government Org. etc.
