ANSI/ASME B16.11 Forged Socket weld Elbow

ANSI/ASME B16.11 Stainless steel ASTM A182 304/304H forged Socket weld Elbow, ANSI/ASME B16.11 duplex steel ASTM A182 F44/F45/F55 forged Socket weld Elbow, Duplex Steel ASME SA 182 F53/F60/F61 forged Socket weld Elbow, ANSI/ASME B16.11 Carbon Steel ASTM 105 F42/F46/F52 forged Socket weld Elbow, Carbon Steel ASTM A694 F56/F65/F70 forged Socket weld Elbow, Alloy Steel ASTM A182 F1/F5/F9 forged Socket weld Elbow, ANSI/ASME B16.11 Alloy Steel ASME SA182 F11/F22/F91 forged Socket weld Elbow

Forged Pipe fittings offered in different choices such as elbow, bushing, tee, coupling, nipple and union. It is available in different size, structure and class with different materials such as Stainless steel, duplex steel, alloy steel and carbon steel. JF engineering is the best supplier of Socket weld Elbow forged fittings that are designed under the expert guidance. We are highly experienced company in ANSI/ASME B16.11 forged fittings and ensure quality of each product.

Socket weld Elbow forged fitting has varieties of features such as reliability, durability and dimensional precision. There are lots of advantages of this forged elbow that are easy to install, rugged and corrosion resistant. We are involved in providing a widespread range of forged elbows in different sizes and thicknesses. We are the best in offering different types of elbows such as forged 90 degree elbow, forged 45 deg elbow and forged 180 deg elbow. These elbows used in various industries like chemical industry, sugar mill, fat & fertilizer and distilleries.

Specification - ASME B16.11 Forged Elbow

Socket Weld Elbow

Size: 1/2"NB TO 4"NB IN
Class: 3000 LBS, 6000 LBS, 9000 LBS
Type: Socket Weld (S/W) & SCREWED (SCRD) – NPT, BSP, BSPT
Form: 45 Deg Elbow, 90 Deg Elbow, Forged Elbow, Threaded Elbow, Socket Weld Elbow.
Materials: Stainless Steel Forged Coupling – SS Forged Coupling
Grade : ASTM A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Duplex Steel Forged Coupling
Grade : ASTM / ASME A/SA 182 UNS F 44, F 45, F51, F 53, F 55, F 60, F 61

Carbon Steel Forged Coupling - CS Forged Coupling
Grade : ASTMA 105/A694/ Gr. F42/46/52/56/60/65/70

Low Temperature Carbon Steel Forged Coupling - LTCS Forged Coupling
Grade : A350 LF3/A350 LF2

Alloy Steel Forged Coupling - AS Forged Coupling
Grade : ASTM / ASME A/SA 182 F1/F5/F9/F11/F22/F91

Value Added Service: Hot Dip Galvanizing
Electro polish

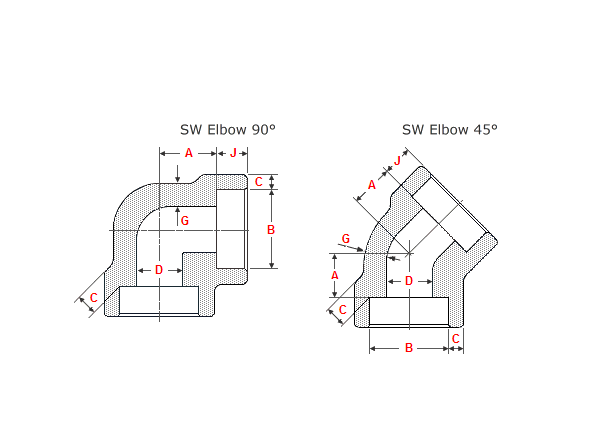

Dimensions Socket Weld Elbow

Dimensions NPS 1/2 to 4 - 90° - Class 3000

NPS Socket
Bore
Depth
Socket
Bore
DIA
Socket
WT
Body
WT
B J D C G
1/2 21.95
21.70
10 16.6
15
4.65
4.10
3.75
3/4 27.30
27.05
13 21.7
20.2
4.90
4.25
3.90
1 34.05
33.80
13 27.4
25.9
5.70
5.00
4.55
42.80
42.55
13 35.8
34.3
6.05
5.30
4.85
48.90
48.65
13 41.7
40.1
6.35
5.55
5.10
2 61.35
61.10
16 53.5
51.7
6.95
6.05
5.55
74.20
73.80
16 64.2
61.2
8.75
7.65
7.00
3 90.15
89.80
16 79.5
46.4
9.50
8.30
7.60
4 115.80
115.45
19 103.8
100.7
10.70
9.35
8.55
NPS B J D C G
Socket
Bore
Depth
Socket
Bore
DIA
Socket
WT
Body
WT
NPS Center to bottom of socket A
90°
1/2 15.5
3/4 19.5
1 22
27
32
2 38
41.5
3 57.5
4 66.5
NPS 90°
Center to bottom of socket A

Dimensions NPS 1/2 to 2 - 90° - Class 6000

NPS Socket
Bore
Depth
Socket
Bore
DIA
Socket
WT
Body
WT
B J D C G
1/2 21.95
21.70
10 12.5
11
5.95
5.20
4.80
3/4 27.30
27.05
13 16.3
14.8
6.95
6.05
5.55
1 34.05
33.80
13 21.5
19.9
7.90
6.95
6.35
42.80
42.55
13 30.2
28.7
7.90
6.95
6.35
48.90
48.65
13 34.7
33.2
8.90
7.80
7.15
2 61.35
61.10
16 43.6
42.1
10.90
9.50
8.75
NPS B J D C G
Socket
Bore
Depth
Socket
Bore
DIA
Socket
WT
Body
WT
NPS Center to bottom of socket A
90°
1/2 19.5
3/4 22.5
1 27
32
38
2 41
NPS 90°
Center to bottom of socket A

Marking and Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At JF Engineering Products LLP all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report

Shipping Policy

Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.

Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. If ASME B16.9 Forged Elbow is out of stock, orders may take up to 2-4 weeks to ship. JF Engineering Products LLP will notify buyer if this situation occurs..

Uses & Application

JF Engineering Products LLP take immensure pleasure in introducing itself as one of the leading Manufacturer & Exporter of high quality ASME B16.9 Forged Elbow to meet the customer ultimate requirements in the fields of:

Chemical Oil Mills Petrochemical Mining Refineries Construction
Fertilizers Shipbuilding Power Plant Steel Plant Nuclear Power Offshore
Oil & Gas Defence Paper Ports Breweries Railway
Cement Engineering Co. Sugar & Government Org. etc.
