JF Engineering Products LLP

Flanges

JF Engineering Products LLP manufacturer & exporter of Flanges availbale in various forms and size, standards like ASME B16.5 flanges, ASME B16.47 Flanges and ASME B16.36 flanges.These all standards availble in all type of flanges like Weld Neck Flanges, Blind Flanges, Spectacle Blind flanges, Slip on flanges, Orifice flanges and Threaded Flanges etc.

We have specialization to manufacture customized Flange per customers’ specifications, we welcome small quantity order.

Weld Neck Flange

Weld neck pipe flanges are connected to the pipe by welding the pipe to the neck of the pipe flange, which helps to pass on the stress from the weld neck to the pipe itself. This also reduces high stress concentration at the base of the hub of the weld neck pipe flanges. Weld neck pipe flanges are generally used in high pressure applications, where hot or cold temperatures exist. The inside diameter of a weld neck pipe flange is machined to match the inside diameter of the pipe.

We offer weld neck pipe flanges manufactured at our facility to companies in various industries including shipbuilding, power generation, petrochemical plants, oil refineries, waste water treatment plants, paper mills, pharmaceutical plants and turnkey projects among others.

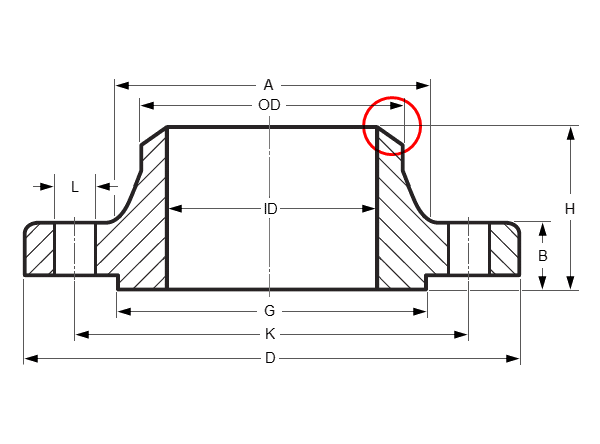

Dimension - ASME B16.5 Weld Neck Flange

NPS 1½ - O.D. 48.3

CL 150 300 600 900 1500 2500
DIA
A
65 70 70 70 70 79
DIA
D
125 155 155 180 180 205
THK
B
15.9 19.1 22.3 31.8 31.8 44.5
17.5 20.7 28.7 38.2 38.2 50.9
DIA
G
73.2 73.2 73.2 73.2 73.2 73.2
DIA
K
98.4 114.3 114.3 123.8 123.8 146
H 60 67 70 83 83 111
61.6 68.6 76.4 89.4 89.4 117.4
NO.
L
4 4 4 4 4 4
DIA
L
15.9 22.2 22.2 28.6 28.6 31.8
Stud Bolts Diameter x Length
DIA
(in)
1/2 3/4 3/4 1 1 1⅛
Len
mm
70 90 110 140 140 170
Other Diameters
NPS 1/2 3/4 1 2
3 4 5 6 8 10
12 14 16 18 20 24

Notes:

  • Dimensions are in millimeters unless otherwise indicated.
  • The length of the Stud Bolt does not include the height of the chamfers (points).
  • ID = Depending on the wall thickness of the pipe, must be specified by the purchaser.

Marking and Packing

Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.

Quality Assurance

At JF Engineering Products LLP, all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.

Test Certificates

Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report

Shipping Policy

Delivery time and delivery dates are based on the "type and quantity" of steel ordered. Our sales team will provide a delivery schedule when quoting to you. On rare occasions the delivery schedule may change so please check with our sales department when placing any orders.

Orders will be sent out within 2-3 business days, and may take up to 5-10 business days in transit. If Flange is out of stock, orders may take up to 2-4 weeks to ship. JF Engineering Products LLP will notify buyer if this situation occurs..

Uses & Application

JF Engineering Products LLP take immensure pleasure in introducing itself as one of the leading Manufacturer & Exporter of high quality ASME B16.5 Weld Neck Flange to meet the customer ultimate requirements in the fields of:

Chemical Oil Mills Petrochemical Mining Refineries Construction
Fertilizers Shipbuilding Power Plant Steel Plant Nuclear Power Offshore
Oil & Gas Defence Paper Ports Breweries Railway
Cement Engineering Co. Sugar & Government Org. etc.
